Ekcel

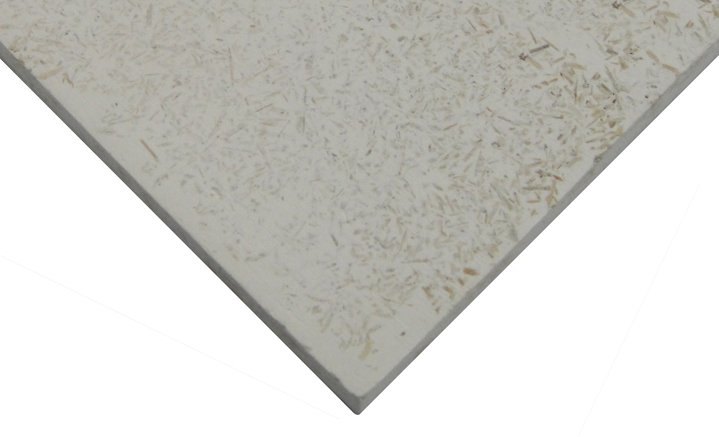

Mat BSB
- Both surfaces burled, all four edges taper for acoustic jointing
- An Anutone invention (2003)
- Great LF sound absorber (where exposed), LF noise | vibration isolation where backer board
| Parameters | Specifications |
|---|---|
| Type | Non-Grid |
| Finish | Plasters |
| Core | Microparticle|Longfibre |
| Thickness (mm) | 18 |
| Size (mm) | 600 x 1200 |
| Density (Kg/m3) | 900 |
| Weight (Kg/m2) | 16.2 |
| Fire (Class) | 1 & P |
| NRC | E300*- 0.42 (125Hz - 1.0) |
| STC | 42** |
| Thermal (W/mk) | 0.1 |
| Climate (0C, RH) | 50, 95 |
| Light (%) | na |
| Green (VOC, RC%) | Low, 50 |
| Warranty (Years) | 10 |
| Maintenance | Paintable |
| Install Accessories - Ceiling | Strut WC25, SA25, MC45, CC25, SynthPF, Seam AJC (KSCH optional) |
| Install Accessories - Panelling | Strut CC10|CC25|CC50, SynthPF, Seam AJC, Stick S7, Seam AJC (Sway optional) Local hardware and fasteners by others |
| Remarks | Proper jointing with Seam AJC is very important for noise isolation results. Field STC values depend on other considerations! |
**Single stud, double layer, single skin, SynthPF
Effective noise|vibration isolation between screens of Gopalan Cinemas Signature Mall, Bengaluru with Mat BSB demising walls
